JBZ-M8 Long Cup Forming Machine


 JBZ-M8 Long Cup Forming Machine

The JBZ-M8 long cup forming machine is a rotary multi-station machine. It can produce high quality paper cups through automatic paper feeding, sealing, curling, cup tube preheating, cup tube lamination, cup tube trimming, etc. The produced cup is long in shape and can hold various beverages.

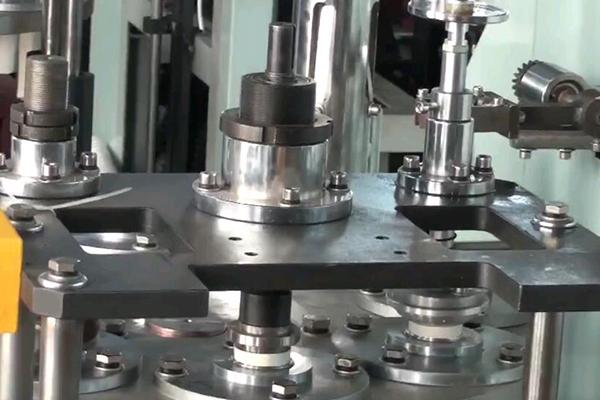

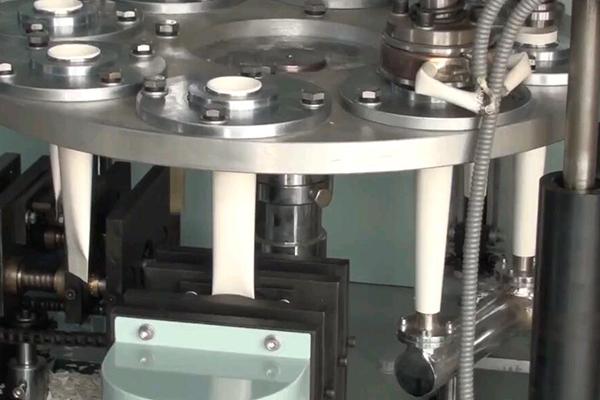

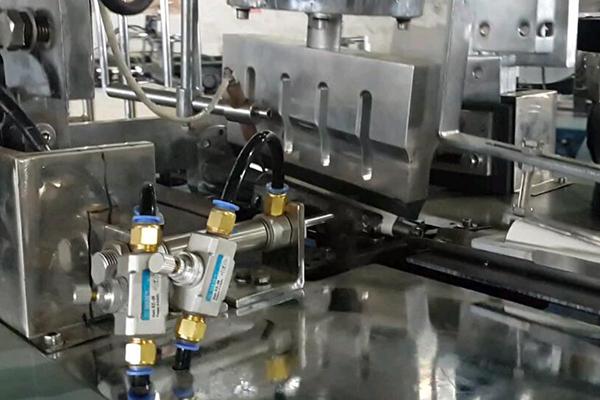

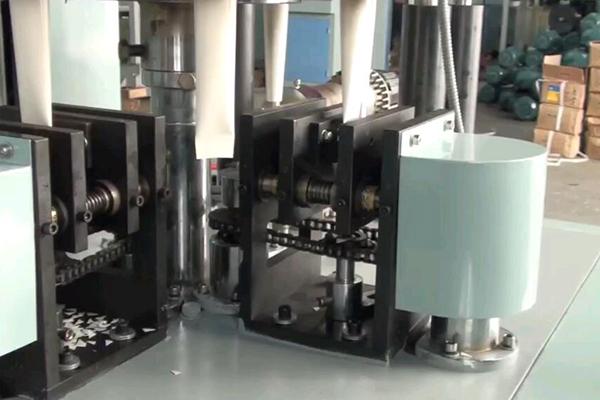

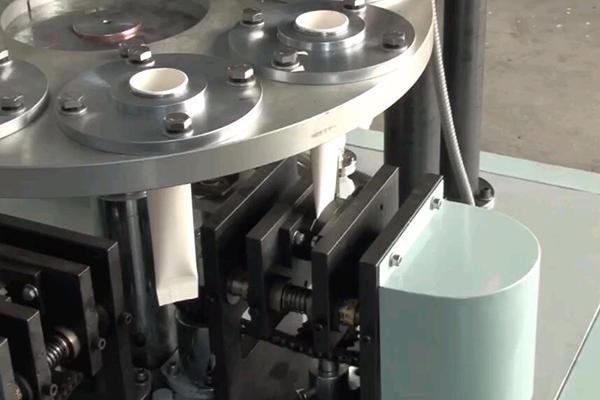

Machine details
Technical Specifications
Model JBZ-M8
Forming specification Outer diameter of mouth φ35mm~φ60mm Conicity 2o~6omm Height 150~220mm
Paper material PE coated paper
Paper specification 180g/m2~240g/m2 (allowable thickness range of same die paper: ±0.03mm)
Production capacity 32-45 (pcs/min)
Power supply 380V/50Hz
Total power 7.5kw
Weight 1300kg
Packing size(L*W*H) 2450*1260*2000mm

Sini is a China long cup forming machine manufacturer and supplier. We offer long cup forming machine, and die cutting machine, automatic paper plate forming machine, cake tray forming machine, paper dish forming machine. Our high quality products are offered at competitive prices. Sini is located in China, and the full chain of manufacturing paper cup sleeve machine, automatic plastic thermoforming machine can be completed in China, even in one city. Lower manufacturing cost saves your purchasing cost. The more details of each product are shown on the page with description.
