  4. JBZ-12H High Speed Paper Cup Forming Machine

JBZ-12H High Speed Paper Cup Forming Machine


 JBZ-12H High Speed Paper Cup Forming Machine

1. Reliability
Our JBZ-12H middle speed paper cup forming machine appears with high performance, high efficiency and high quality. Outfitted with integrated steel plate machine body and oil spraying lubrication system, our paper cup machine keeps long-term normal and steady operation.

2. High efficiency and energy conservation
Advanced high-precision cylindrical cam driving unit with gear drive system ensures precise forming at every station. Servo tracking system for bottom paper feeding fixes the size of bottom paper to save raw materials effectively.

3. Foreign technology and domestic manufacture

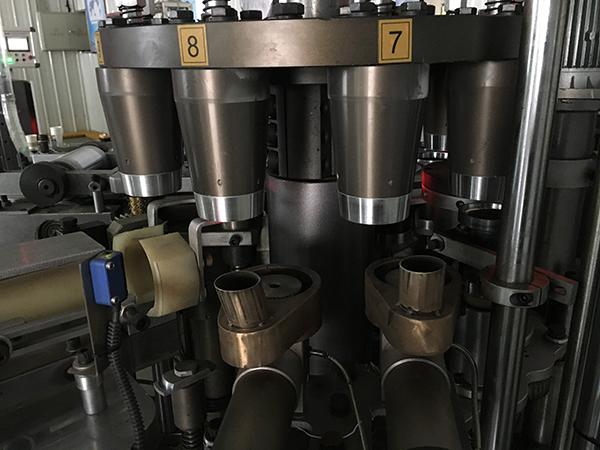

The cup bottom is processed by Switzerland Leister heating system through 2 steps flameless heating. Moreover, every production procedure is detected by Japan Omron photoelectric device and will be reported.

4. User-friendly design

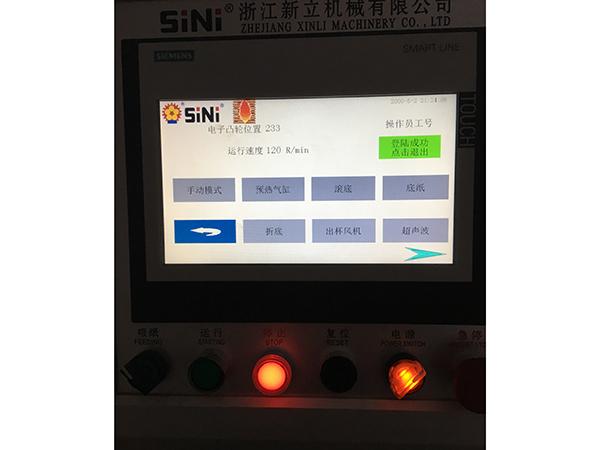

Under the control of PLC system through human-computer interface, our middle speed paper cup forming machine keeps long term stable operation. Manual operation can be replaced by automatic paper cup counting and collecting table with appropriate setting.

Machine Structure

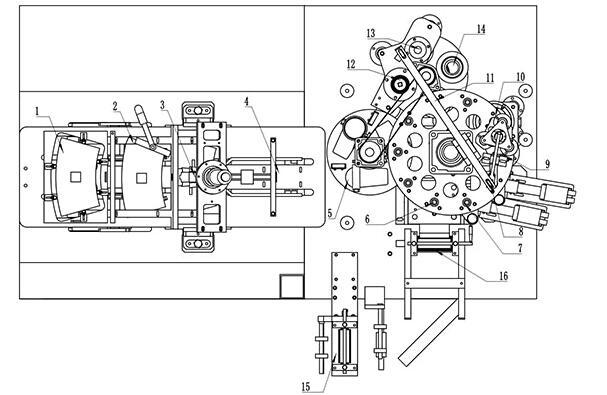

  • 1.Paper holder
  • 2.Paper fan preheating
  • 3.Ultrasonic
  • 4.Cup pipe
  • 5.Cup turnplate
  • 6.Bottom punching
  • 7.Bottom paper preheating 1
  • 8.Bottom paper preheating 2
  • 9.Bottoman paper folding
  • 10.Bottom knurling
  • 11.Cup curling
  • 12.Top curling 1
  • 13.Top curling 2

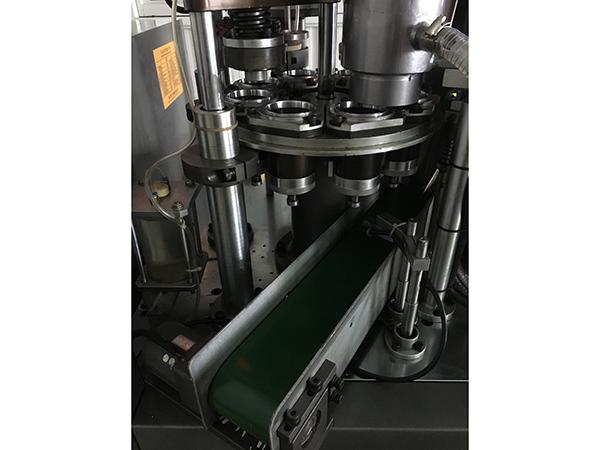

  • 14.Cop output
  • 15.Bottom feeding 1
  • 16.Bottom feeding 2

Main Advantages:
  • Fine grinding machine body, first-step hot air heating system and Unique welding head design make sure the stabile, fast and long-term machine running.
  • Different from traditional iron mould, our machine is using aluminum alloy moulds, more durable, and no pollution to the cups.

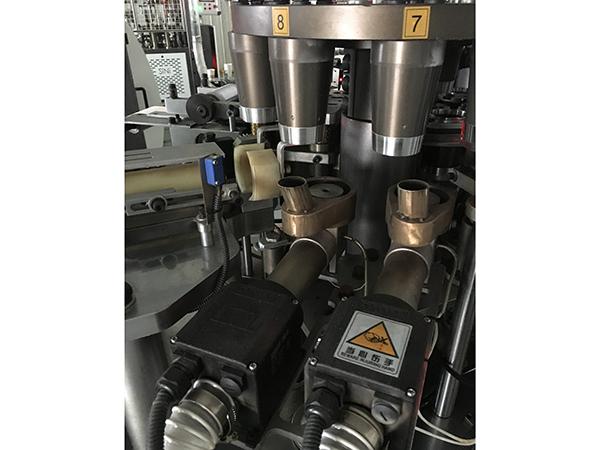

  • Two Leister heaters are used for cup bottom sealing, highly increase the heating effect and ensure the good quality of knurling.
  • The whole cup producing process is detected by photoelectric detectors. They will stop the machine once any problem happens.
  • Double knurling system ensures you can get really nice and good quality cups.
  • Siemens brand PLC control system, good quality and excellent performance.
Model JBZ-12H
Cup size 6~16oz, (Outer diameter of cup rabbet 60~100mm, Outer diameter of cup bottom 50~70mm, Cup height 60~135mm, Bottom depth 5~10mm)
Rated power 90-120pcs/min
Total power 19KW
Actual power 10.5KW
Air Pressure 0.6m3/min;0.6MPa(provided by customer)
Applicable raw paper 190~350g/m2 (single/double-sided PE coated paper)
Machine weight 3800Kg
Machine packing size 2700×1500×1800mm
Collector packing size 1150×850×1800mm

Note: The thickness of paper’s PE coating should not less than 15g/m2
