JBZ-NB Paper Cup with Handle, Paper Cup Forming Machine

JBZ-NB (Paper Cup with Handle)

 JBZ-NB Paper Cup with Handle, Paper Cup Forming Machine

With a high degree of automation, our paper cup machine can produce both single side PE coated paper cups and two-side film-coated paper cups. The output cup will have a handle and can hold both hot and cold beverages such as soft drinks, coffee and tea, etc. This paper cup machine uses an ultrasonic sealing system, resulting in sound welding effect, low energy consumption and high efficiency. It is built with a multi-working station and can perform all the necessary cup making steps, including automatic paper feeding, ultrasonic welding, handle processing, oiling, bottom punching, heating, knurling, curling and cup discharge.

Main characteristics

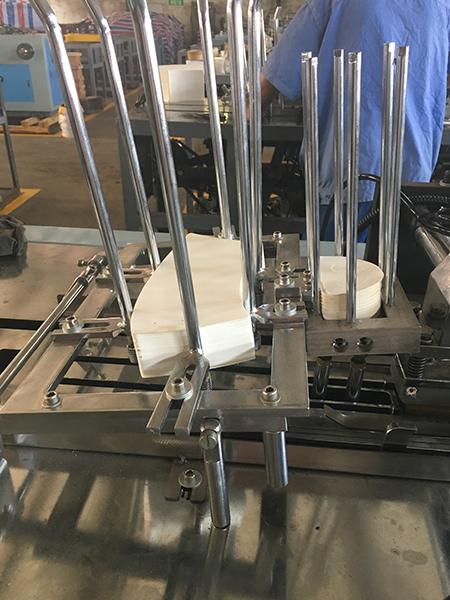

  • The cutted paper cup fans and cup handles will be placed on the machine.
  • The alarming system adopts multi-position inspection and automatically gives an alarm when it tests any problem.

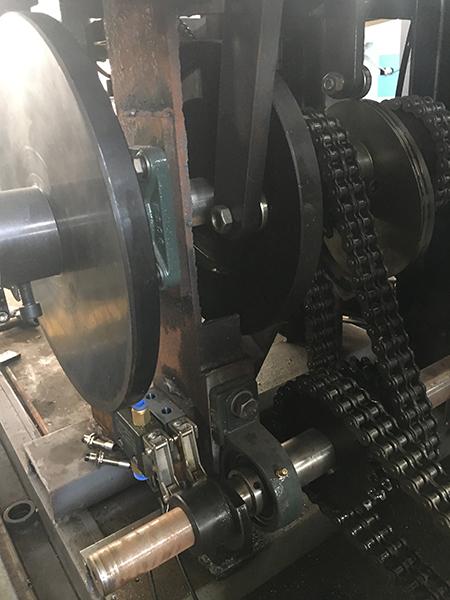

  • Strong, firm and precise gearbox and chain transmission system ensures the stable running.

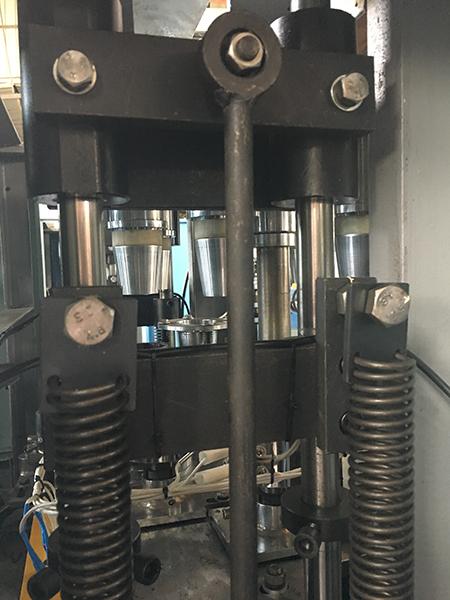

  • Three strong shafts and two high quality springs are used to achieve a stable operation.
  • The machine adopts high-position stopping device, so that the machine always stops at the highest point, the mold and the heating furnace are fundamentally separated and the paper cup is prevented from being burned.
  • As for cup forming, a retractable knife is used for uniform bottom wrinkles, good sealing and low leakage.
  • The patented bottom rolling device provides 5 times embossing force of traditional rolling device.
Technical Parameters
Machine Type JBZ-NB
Paper Cup Specification 6 ounces 8 ounces 12 ounces
Cup Paper Material double-faced PE coated paper
Cup Height 50-120mm
Rated Productivity 40-50 pieces/minute (pcs/min)
Power 380V 50Hz(it can be changed if customer require)
Total Power 6.5KW
Weight 1,800Kg
Packing Measurements (L*W*H) 3,200*1,350*1,800mm
800*750*1,300mm
Power Supply Requirements 0.2m3min;0.6MPa (chosen by the customer

Sini is a China paper cup machine manufacturer and supplier. We offer paper cup machine, and paper cup forming machine, paper meal box forming machine, paper cake case forming machine, paper cup sleeve machine. Our high quality products are offered at competitive prices. Sini is located in China, and the full chain of manufacturing die cutting machine, paper bowl machine can be completed in China, even in one city. Lower manufacturing cost saves your purchasing cost. The more details of each product are shown on the page with description.
