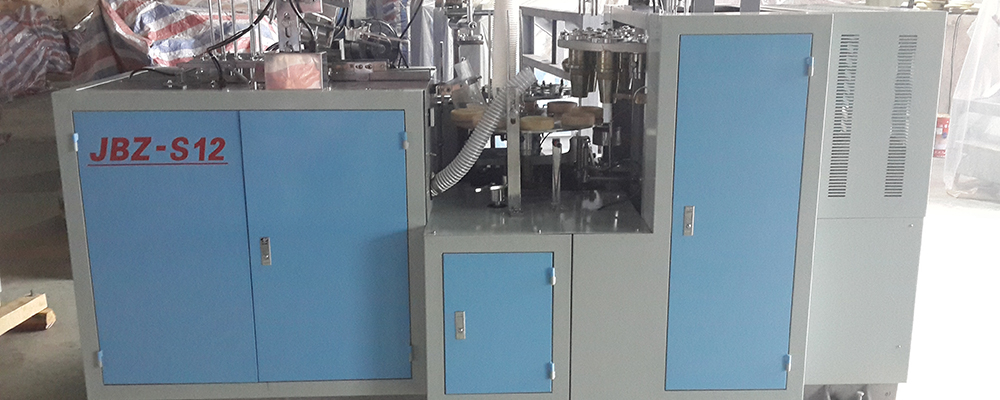

JBZ-S12 Double PE coated Paper Cup Forming Machine

JBZ-S04/S12/S16/S22

JBZ-S12 Double PE coated Paper Cup Forming Machine
Inquiry Form

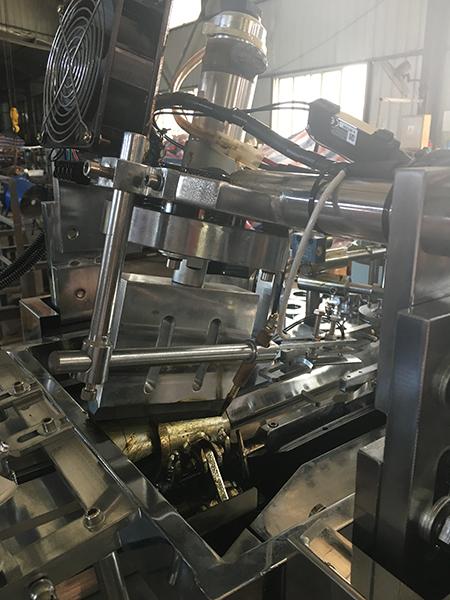

With a high degree of automation, the JBZ-S paper cup machine is used to produce one side or two side film-coated paper cups. The formed cup can hold both hot and cold beverages such as soft drinks, coffee and tea, etc. This machine uses an ultrasonic sealing system, resulting in a sound welding effect, low energy consumption and high efficiency. It is built with a working station and can perform all the necessary cup making steps including, automatic paper feeding, ultrasonic welding, oiling, bottom punching, heating, knurling, curling and cup discharge.

Main characteristics

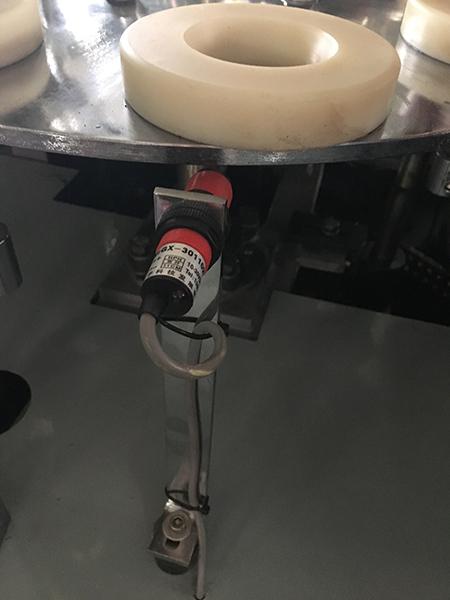

  • The alarming system adopts multi-position inspection and automatically gives an alarm when it tests any problem.

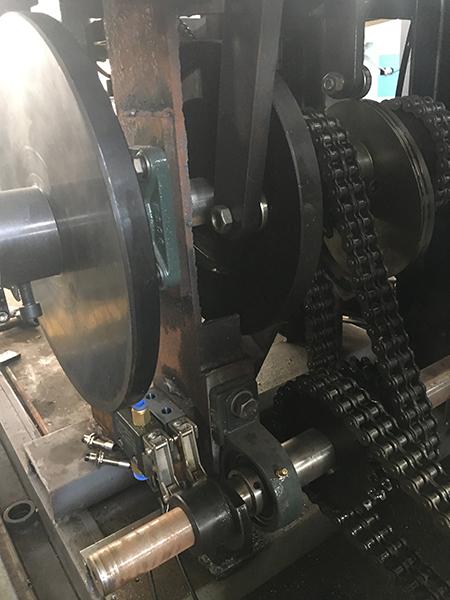

  • Strong, firm and precise gearbox and chain transmission system ensures the stable running.

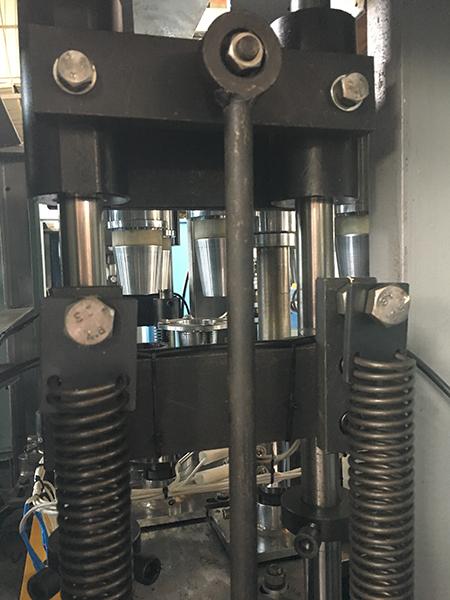

  • Three strong shafts and two high quality springs are used to achieve a stable operation.
  • The machine adopts high-position stopping device, so that the machine always stops at the highest point, the mold and the heating furnace are fundamentally separated and the paper cup is prevented from being burned.

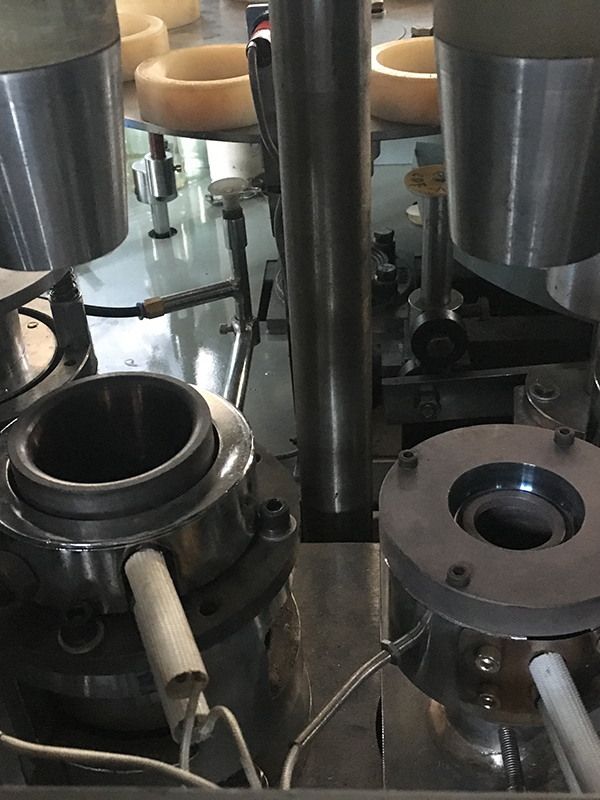

  • As for cup forming, a retractable knife is used for uniform bottom wrinkles, good sealing and low leakage.
  • The patented bottom rolling device provides 5 times embossing force of traditional rolling device.
The machine body is clean and easy to maintain.
Technical Parameters
Model JBZ-S04 JBZ-S12 JBZ-S16 JBZ-S22 JBZ-S22 (supper size)
Specification of paper cup 2~6.5OZ 6~12OZ 12~16OZ 16~22OZ 22-36oz
Paper material Single-sided, double-sided PE coated paper
Mouth diameter 50-80 50-95 50-95 50-95 90-120
Bottom diameter 35-70 35-70 35-70 35-70 70-90
Cup height 30-60 50-120 100-150 100-175 120-190
Bottom depth ≤10 ≤10 ≤10 ≤12 ≤12
Angle 4-6o 2-8o 2-8o 2-8o 2-8o
Rated productivity 40-50pcs/min 35-45pcs/min 30-40pcs/min 25-35pcs/min
Power supply 380V 50Hz
Total power 5KW 6KW 7KW
Weight 1600Kg 1900Kg 2000KG
Packing size(L*W*H) 2800×1350×18000mm
800×750×1300mm 		2800×1350×18000mm
800×750×1300mm 		3000×1450×1900mm
800×750×1350mm 		3300×1450×2000mm
800×750×1350mm 		3300×1450×2000mm
800×750×1350mm
