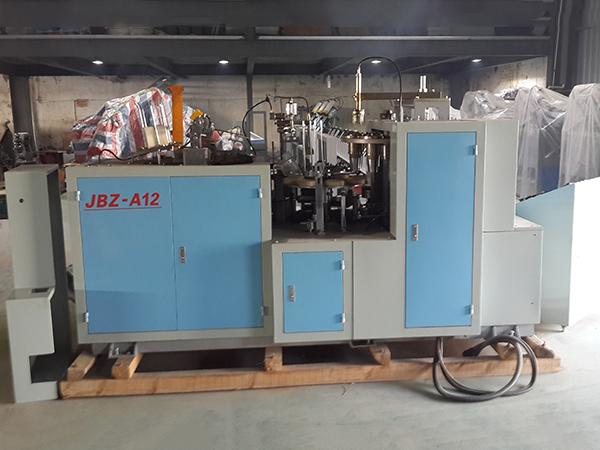

JBZ-A12 Single PE Coated Paper Cup Forming Machine
JBZ-A04/A12/A16/A22
This series of paper cup machines is designed to produce one-side film-coated paper cup. The output paper cup can hold tea, coffee, milk, ice cream, and more. Equipped with a multi-working station, this paper cup machine can perform automatic paper feeding, sealing, oiling, bottom punching, heating, knurling, curling and cup discharge.
Main characteristics
The machine body is clean and easy to maintain.

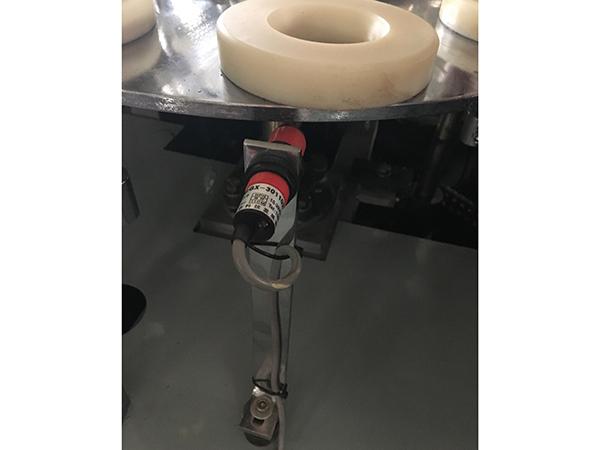

The alarming system adopts multi-position inspection and automatically gives an alarm when it tests any problem.

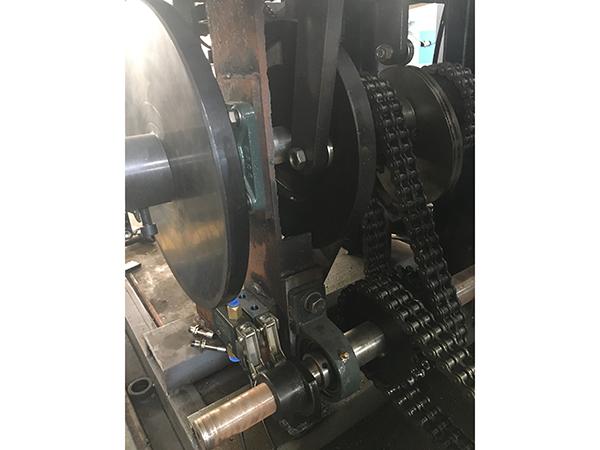

Strong, firm and precise gearbox and chain transmission system ensures the stable running.

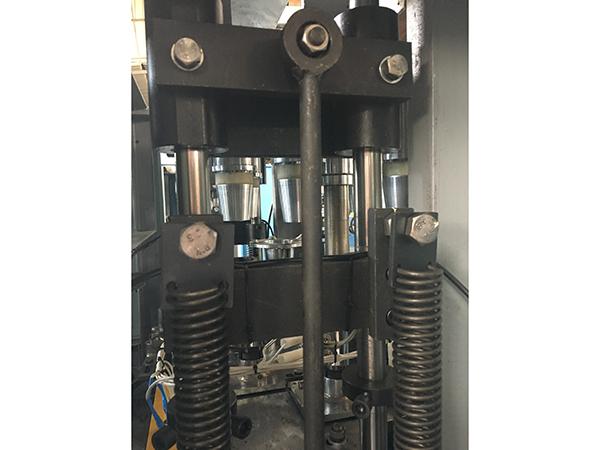

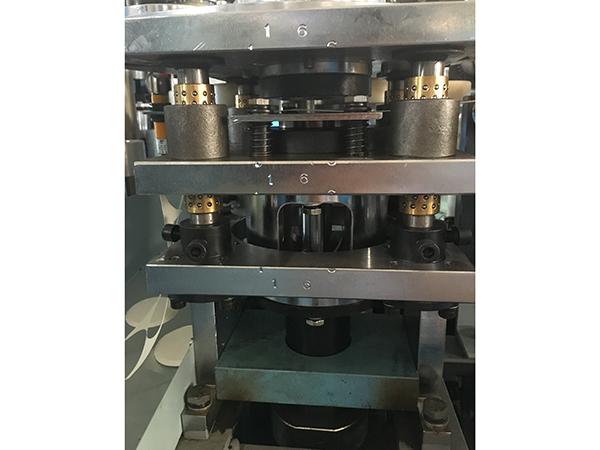

Three strong shafts and two high quality springs are used to achieve a stable operation.
The machine adopts high-position stopping device, so that the machine always stops at the highest point, the mold and the heating furnace are fundamentally separated and the paper cup is prevented from being burned.

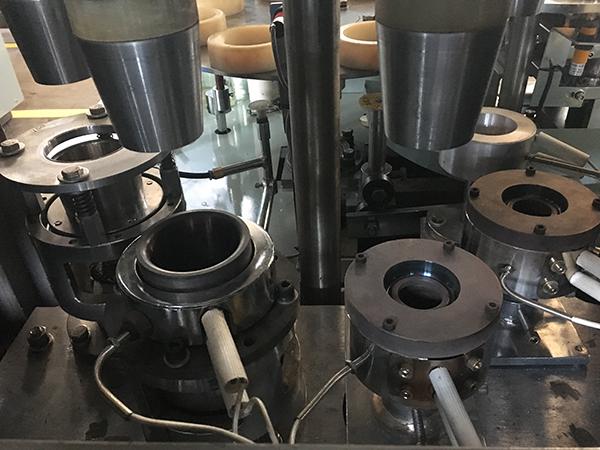

As for cup forming, a retractable knife is used for uniform bottom wrinkles, good sealing and low leakage.
The patented bottom rolling device provides 5 times embossing force of traditional rolling device.
| Model | JBZ-A04 | JBZ-A12 | JBZ-A16 | JBZ-A22 |
| Specification of paper cup | 2~6oz | 6~12oz | 8~16oz | 16~22oz |
| Paper material | Single-sided PE coated paper | |||
| Mouth diameter | 50-80 | 50-95 | 50-95 | 50-95 |
| Bottom diameter | 35-70 | 35-70 | 35-70 | 35-70 |
| Cup height | 30-60 | 50-120 | 80-150 | 100-175 |
| Bottom depth | ≤10 | ≤10 | ≤10 | ≤12 |
| Angle | 4-6o | 2-8o | 2-8o | 2-8o |
| Rated productivity | 40-50pcs/min | 35-45pcs/min | 30-40pcs/min | |
| Power supply | 380V 50Hz | |||
| Total power | 5KW | 6KW | ||
| Weight | 1600Kg | 1900Kg | ||
| Packing size(L*W*H) | 2800×1350×1760mm 730×600×1100mm |
2800×1350×1760mm 730×600×1100mm |
3000×1350×1900mm 730×600×1100mm |
3300×1450×2000mm 730×600×1100mm |
