Paper Cup Inspection Machine
JBC-200
| Item | Parameter |
| Detection index | Cup rim detection requirement: detecting the size, unstuck rim, stain, broke, curl Cup bottom detection requirement: detecting the size, bottom sunken, broke, stain, hole, bottom fall, bottom penetrate and yellow pressure-sensitive adhesive |
| Maximum false detection rate | |
| Detection speed | ≤10800 pieces/h |
| Detection passing rate | ＞99% Passing rate ＜99.9% while the diameter of black spot is smaller than 1.0 mm and bigger than 0.6 mm; False detection rate ＜0.5% while the diameter of black spot is smaller than 0.5 mm; Passing rate ＜99.9% while the top mouth ovality is bigger than 0.5mm False detection rate ＜0.5% while the top mouth ovality is bigger than 0.5mm |
| Application range | During the producing process of water cups, drink cups, milk-tea cups and instant noodles bowls |
| Visual tech | Advanced image visual detection tech |
| Image processing | Matching location Automatic search for feature areas Related size detection Comparing standard template image with setting parameter |
| Number | Detection specification of products (Unit: mm) | Detection item | Remark | |||
| Top diameter (mm) | Bottom diameter (mm) | Height (mm) | Angle (mm) | |||
| 1 | 100-140 | 60-120 | 50-120 | ≥6 | Top mouth detection + Bottom detection | With products which is higher than 120 or angle less than 6°, the top mouth detection need to equip with two working station and detect in two steps. |
| 2 | 70-100 | 40-60 | 50-120 | ≥6 | Top mouth detection + Bottom detection | |
| 3 | 50-70 | 35-40 | 40-115 | ≥6 | Top mouth detection + Bottom detection | |

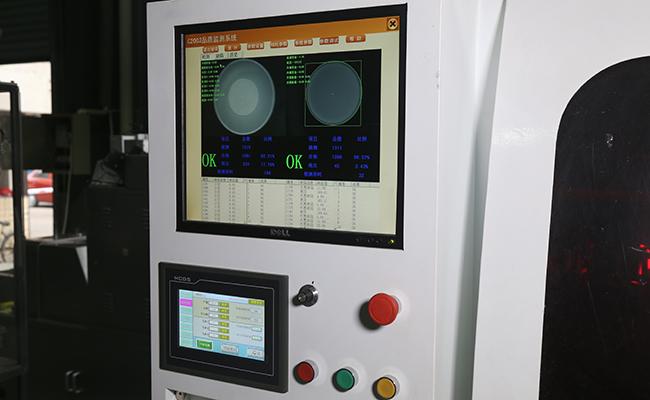

The operation panel

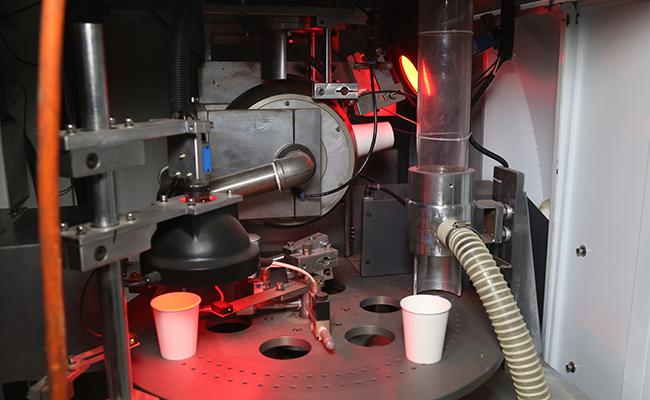

Inside overlook. Red light detection
| Model | JBC-200 |
| Total Power | 3.7 KW |
| Electric Source | 380V 50Hz |
| Weight | 1800KG |
| Machine Size | 1600 X 1500 X 2000mm |
| Packing Size | 1700 X 1650 X 2150mm |
| Connecting to Machine (Optional) | 1. Connect to two middle speed / high speed machine 2. Connect to three low speed machine 3. Connect to four low speed machine *Connection tube is not included(extra to pay). *Cup collector is optional(extra to pay). * Transit table is optional(extra to pay). |
* Customer can change the lens according to the product requirement
