ZDJ-300K High Speed Automatic Paper Plate Forming Machine

ZDJ-300K

 ZDJ-300K High Speed Automatic Paper Plate Forming Machine

With independent intellectual property rights, our high speed automatic paper plate forming machine is designed and manufactured according to market demands. The main functions of this machine are auto paper feeding, forming, dish ejecting, temperature regulation and auto count. It features high operating speed, safe operation, easy maintenance, etc.

Machine details:

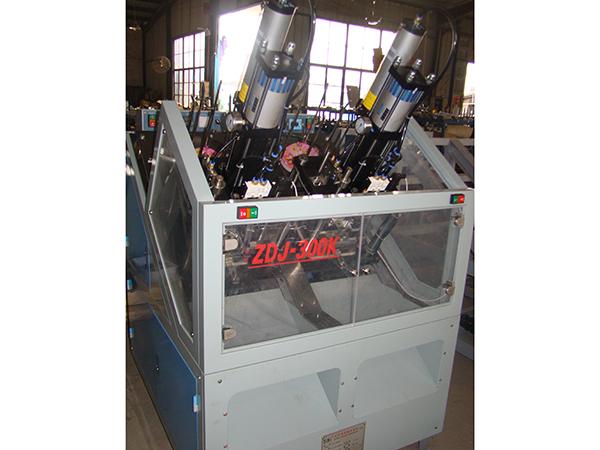

  • Nice machine body with transparent Plexiglas outer cover provides safe and clean production condition.
  • ZDJ-300K paper plate machine can produce with any shapes.

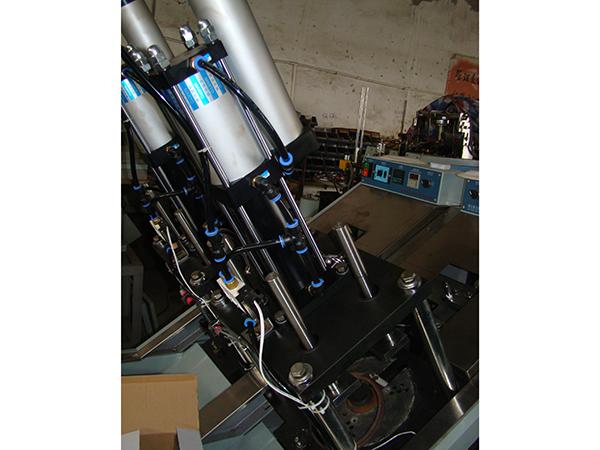

  • Good quality air cylinders ensure good quality paper plates.
  • Easy to operate.

Other options for customers: (extra to pay)

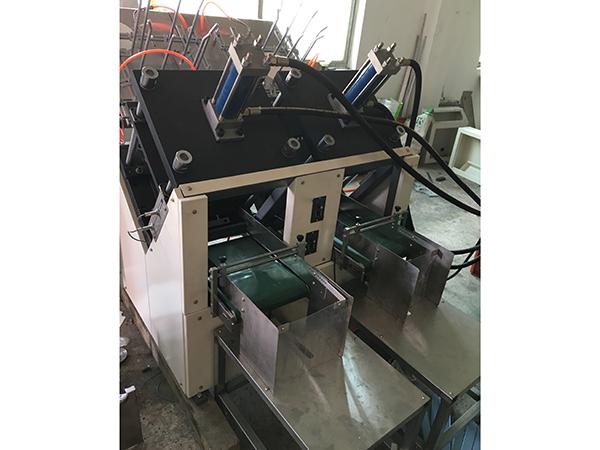

To equip with conveyer belts with automatic counting function:

Technical Specifications
Model ZDJ-300K
Paper plate diameter 4-11inch
Rated productivity 40-50 pcs/min (each workstation)
Power supply 220V 50HZ
Installed power 2KW
Weight 500Kg
Packing size(L*W*H) 1480×1150×2050mm
Air pressure request Working pressure: 0.6Mpa, Working air flow: 1m3/min

Sini is a China high speed automatic paper plate forming machine manufacturer and supplier. We offer high speed automatic paper plate forming machine, and long cup forming machine, paper bowl forming machine, high speed punching machine, paper cup sleeve machine. Our high quality products are offered at competitive prices. Sini is located in China, and the full chain of manufacturing automatic plastic thermoforming machine, die cutting machine can be completed in China, even in one city. Lower manufacturing cost saves your purchasing cost. The more details of each product are shown on the page with description.
