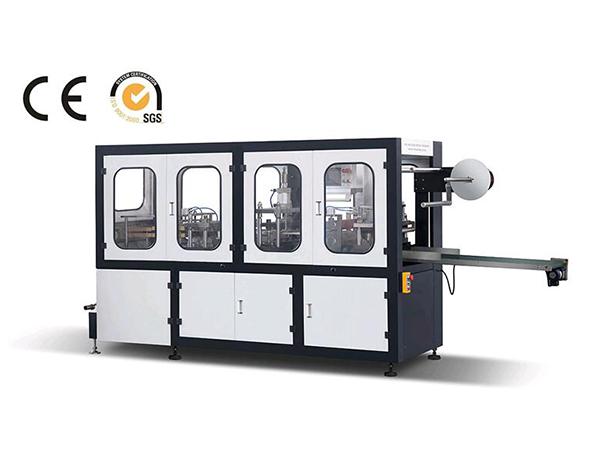

JBZ-450W Automatic Plastic Thermoforming Machine

JBZ-450W Automatic Plastic Thermoforming Machine
Inquiry Form

Main features:
1. The machine is designed and manufactured by the standard of “GMP” in medical industry and “QS” in food industry.
2. This machine can do forming, punching and blanking at the same time to avoid the cross-contamination of product.
3. The forming heating plate can open and close automatically, also can delay to start, so as to control and lower the waste of the material during the production.
4. Easy to replace the mould, application to different specifications of products.
5. Design the mould according to customer’s requirements.
6. Applicable projects: the material of HIPS, PVC, PET, PS.

Main technical parameters：
Cutting Frequency 15--45(times/min)
Power 380v/220v/50HZ
Stroke adjustable range 300mm
Max. Forming Depth 45mm
Max. Forming Area 450×300mm
Consumption >0.3m3/min
Pressure 0.4--0.7mpa
Overall Dimensions 3500×1000×1600mm
Weight 1500kg

Option for Customers:
Add outer cover as below(extra to pay)
