Description
JBZ-22D Paper Cup Forming Machine is as based on JBZ-12D middle speed cup forming machine. Then researched and developed, the machine size, and the intensity and stability of it have been improved greatly. It produced of silicon oil lubrication automatic, bottom punching heating, knurling, curling and cup discharge, collecter. This kind of cup can be beverage, ice cream etc. The machine has adopted new technology, high speed accurate open-cam indexing unit. It has good feature of precise equipment and it is the first choice for the paper cup manufacturer.

Technical specification

Superiority
Machine is be proved that it can run more light, speed higher, better stability, and can do big range size paper cup , 6-22oz, mold allowed exchange. If below 6oz, pls let me know, I need discuss with my engineer if we can do special model for you. The machine is be in lower cost performance.
1, main machine adopt layered structure, bottom and the up working area, energy-efficient, economy and durability
a, Adopt sealing- pouring the oil type lubrication system, making the machine oil long time useful, and machine is not easy wearing;
b, Driving parts adopt two-shaft designed, reducing the mechanical energy consumption greatly.
c, The machine trip can be adjusted according the cup size.
d, The up two turnable plate , big turnable plate and silicon oil plate, designed in small type, making the machine stress small, inertance small when start and stop the machine, inertance small is the first condition to the machine stability.
e, The machine’s basic point of failure is be focused on the up working area, it is easier to change the parts in the mesa directly. As normal, no need to do maintance to the bottom.
f, Lower electric power cost in this speed

2, The machine size ingenious, then occupy few workshop room, also, machine smaller, machine stability more.

3, The electric part,
a, in this machine, we keep the all advantage for the machine JBZ-12D, like sending paper detection, the cam with one chain driving, Precise cylinder open-cam indexing device, two steps preheating the cup bottom, sealing with ultrasonic, the whole photoelectricity fault detection(sending paper, no paper, pressing paper, paper cup stopping detection, etc.), Machine stopping, the scrap cup can be seperated automatically, PLC with touchscreen control system
b, the adding function,the working time and the capacity of each worker who run the machine can be recorded, and the info can be exported by U plate.
The machine can record each size cup info, like the info of the paper fan and the bottom paper.
Reserve the internet function,
The knurling pressure detection, if the knurling pressure higher or not enough, the machine will alarm.

This model machine is separated into two grade, first grade , we advise 6-16oz one machine, then second grade, 16-22oz one machine, the price is 1800USD difference, the up machine price is for the machine that can do the size 6-16oz cup.

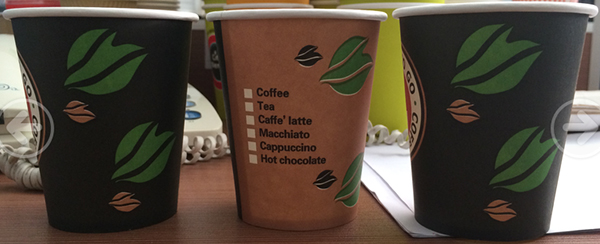

Good quality cup

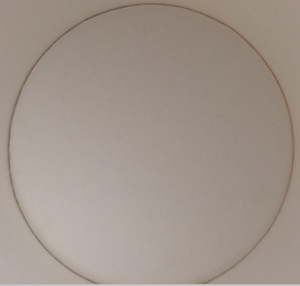

Circle bottom

The up picture is only for reference, like the machine color, if we do some change, we do not need to inform you.

Remarks:
1). Price term: FOB
2). Payment: T/T 30% as advance, the balance pay by T/T
3). Delivery time: Within 60 days after received advance.
4). Packaging: normal wooden packing, no fumigated.
4). The price of the machine contain one set free mould
5). Engineer service and after sale service: Machine one year, Electric parts guarantee for half year, and we can send technician for installation and training at the cost of buyer.
